Cube Nuroad C:62 PRO - Willowgreen 'n' Black

Cube Nuroad C:62 PRO - Willowgreen 'n' Black

LIGHTWEIGHT
TOUGHNESS

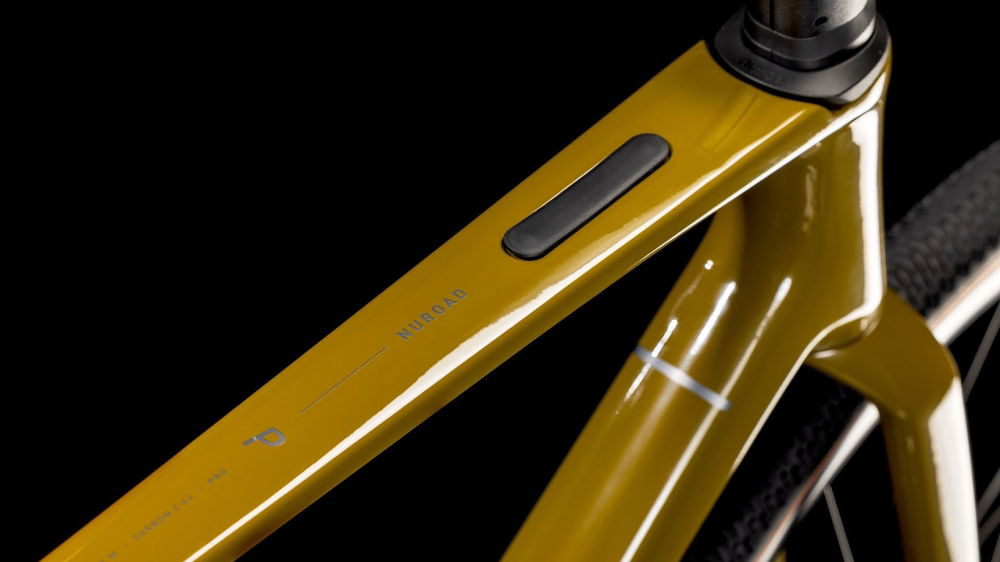

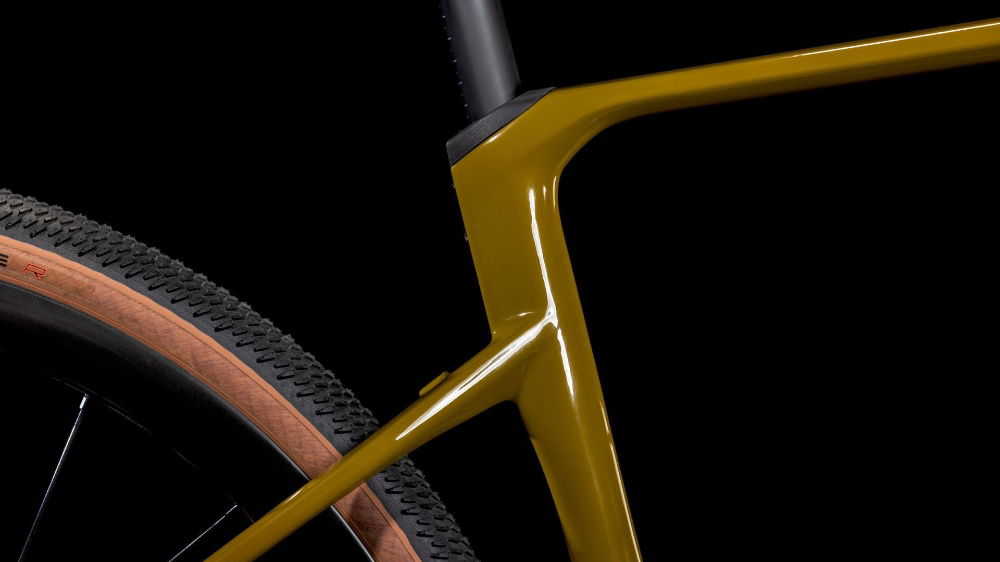

The Nuroad C:62 frame takes everything we know about carbon gravel frames and takes it up a notch. We increased tyre clearance up to 50mm (45mm with mudguards). There's an integrated seat clamp and semi-integrated cable routing to complement the frame's elegant, organic appearance. It's UDH-ready, for versatility and future-proofing. The C:62® carbon fork has two carrier mounting positions. And the frame weight for all this practical innovation? Just 1,150g for a mid-sized frame. So it's tough, but also extremely light. That's versatility, redefined for a new era of gravel exploration.

Frame Material

C:62®

Tire clearance

50 mm

Frame

frame

C:62® Advanced Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, UDH™

size

XS (50cm), S (53cm), M (56cm), L (58cm), XL (61cm)

Rigid fork

CUBE C:62® Technology, 1 1/8" - 1 1/2" Tapered, Integrated Cable Routing, Flat Mount Disc, Fender & Lowrider Mounts, Internal Light Cable Option, 12x100mm

Drivetrain & brakes

shift/ brake levers

Shimano GRX ST-RX820

brake system

Shimano GRX BR-RX820, Hydr. Disc Brake, Flat Mount (160/160)

rear derailleur

Shimano GRX RD-RX820, 12-Speed

front derailleur

Shimano GRX FD-RX820-F

bottom bracket

Shimano SM-BB71-41B, 86mm Pressfit

crankset

Shimano GRX FC-RX820, 48x31T

cassette

Shimano 105 CS-HG710, 11-36T

chain

Shimano CN-M7100

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/2"

Stem

CUBE CIS Stem w/ Cable Routing

handlebar

Newmen Advanced Gravel Bar 318, Carbon, 31.8mm

handlebar tape

ACID Bartape CX

Wheels

wheelset

Newmen Advanced G.34 Carbon, 21/21 Spokes, 12x100mm/12x142mm, Tubeless Ready

tyres

Schwalbe G-One-R, Kevlar, 40-622

Finishing kit

saddle

ACID Nuance Pro

seat post

Newmen Advanced, Carbon, 27.2mm

Product information

colour

willowgreen´n´black

weight

8,7 kg

Art. No

830200

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 2

You can find more information about Bike Classification at the following link.

130
kg

Maximum system weight

The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.

Geometry

XS S M L XL
Seat tube 430 460 490 510 540
Top Tube Horizontal 522 537 560 575 592
Seat angle 75.5° 74.7° 73.9° 73° 73°
Head tube angle 69° 70° 71.5° 72° 72.5°
Chainstays 440 440 440 442 442
Head tube 102 124 155 174 197
Wheelbase 1043 1044 1046 1048 1060
BB-Height to Hub 70 70 70 70 70
Protrusion height - 80mm 743 771 805 824 851
Reach 388 388 393 392 402
Stack 520 544 579 599 623

Ergonomics

XS S M L XL
Stem length 80 80 90 100 100
Handlebar width 420 440 440 460 460
Crank length 170 170 172.5 172.5 175
Length seat post 350 350 350 400 400
Diameter seatpost 27.2 27.2 27.2 27.2 27.2
Diameter tire maximum 728 728 728 728 728
Width tire maximum 50 50 50 50 50

All values are given in millimetres or degrees.

The Nuroad C:62 Pro combines the comfort and low weight of a full carbon gravel chassis with Shimano's gravel-specific GRX 2x12 groupset, giving you everything you need to explore further afield in a huge range of closely spaced gears. The Newmen Advanced G.34 wheelset is the ideal home for a pair of super-grippy Schwalbe tyres. Add the power of Shimano GRX hydraulic disc brakes and the comfort of a full carbon fork, and you're all out of excuses. Where will it take you next weekend?
